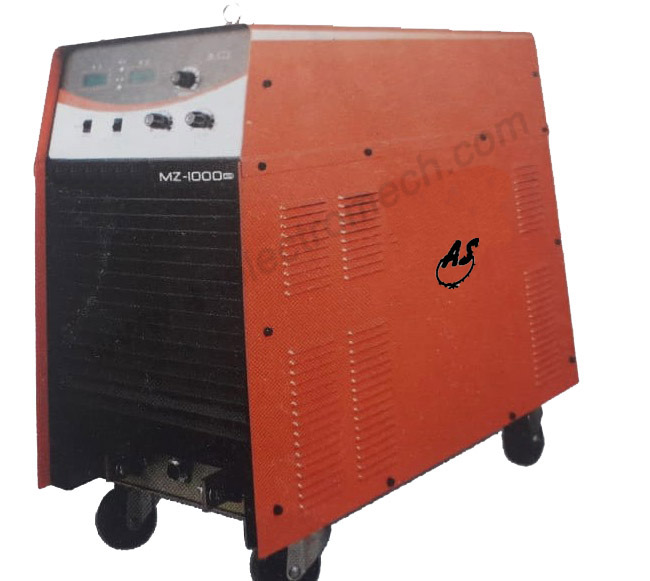

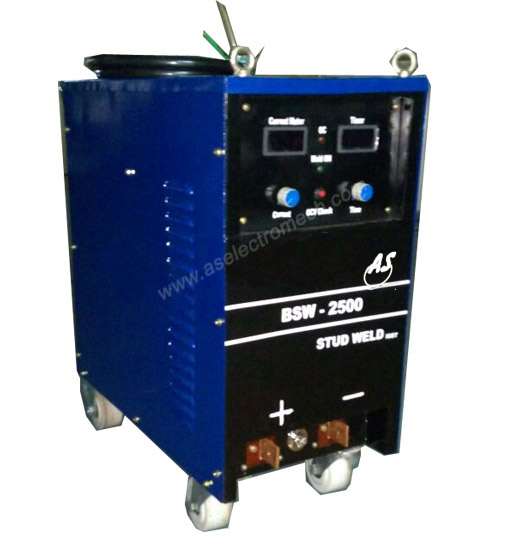

| Parameters | MZ630 | MZ1000 | MZ1250 |
|---|---|---|---|
| Input Voltage | AC 380+-15% | AC 380+-15% | AC 380+-15% |
| Frequency | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 53.1 | 84.3 | 105 |
| No Load Voltage(V) | 72 | 72 | 80 |
| Output Current Range(A) | 50-630 | 100-1000 | 100-1250 |
| Rated Output Voltage (V) | 44 | 44 | 44 |
| ARC FORCE CURRENT RANGE(A) | 0-100 | 0-100 | 0-100 |
| Duty Cycles(%) | 100 | 100 | 100 |
| No-Load Loss(W) | 300 | 300 | 300 |
| Efficiency(%) | 85 | 85 | 85 |
| Power Factor | 0.93 | 0.93 | 0.93 |
| Insulation Grade | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 |
| Net Weight(KG) | 54 | 86 | 90 |
| Packing Dimensions(mm) | 780 x 435 x 760 | 800 x 455 x 785 | 800 x 455 x 785 |
| Model | KDA 1250i | KDA 2500i | KDA 3150i |
|---|---|---|---|

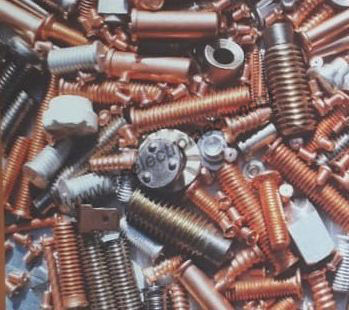

| Stud Range | 2-14mm(RD M16) | 2-28mm | 2-32mm |
| Welding Current | 200-1250A | 200-2500A | 200-3150A |
| Welding Time | 1-3000ms | 1-3000ms | 1-3000ms |
| Input Power | 220/380/400/415/440V 50/60Hz, 3Ph |
220/380/400/415/440V 50/60Hz, 3Ph |
220/380/400/415/440V 50/60Hz, 3Ph |
| Power Supply Cable 4 Wire | 3 x 10 + 1 x 6 5 Meter |
3 x 16 + 1 x 10 5 Meter |
3 x 25 + 1 x 10 5 Meter |
| Rated Input Power | 60kVA | 110kVA | 138kVA |
| Rated Input Current | 72A | 144A | 182A |
| Air Switch | 80A | 160A | 200A |
| Insulation | IP21 | IP21 | IP21 |
| Dimension | 560mm x 450mm x 540mm | 750mm x 450mm x 810mm | 750mm x 450mm x 990mm |
| Weight - Machine | 46kg | 95kg | 145kg |
| Weight - Accessories | 22kg | 55kg | 65kg |

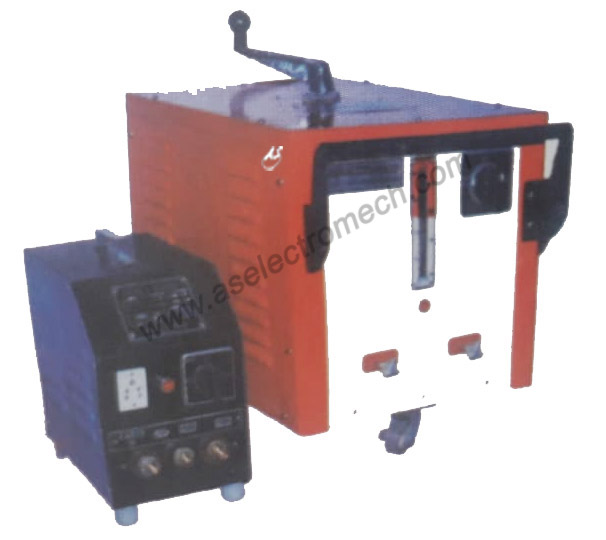

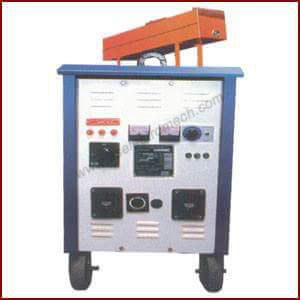

| Model | AS1-200 | AS1-315 | AS1-400 | AS1-500 |
|---|---|---|---|---|
| Power voltage (V) | 380/220/50 | 380/50 | 380/50 | 380/50 |
| Rated Input Capacity (Kva) | 14.4 | 22.8 | 27.7 | 37.2 |
| Rated duty cycle (%) | 35 | 35 | 35 | 35 |
| Open Circuit Voltage(V) | 63 | 65 | 64 | 67 |
| Rated output current(A) | 200 | 315 | 400 | 500 |
| Rated no-load voltage(V) | 28 | 32.6 | 36 | 40 |
| Current adjust range(A) | 45-200 | 70-315 | 85-400 | 110-500 |
| Insulation Class | F | F | F | F |
| Electrode diameter(mm) | 2--4 | 2--6 | 2.5-7 | 3.2-8 |
| Weight(Kg) | 60 | 78 | 90 | 106 |
| Dimension(mm) | 524x355x655 | 572x422x691 | 572x422x691 | 630x483x788 |

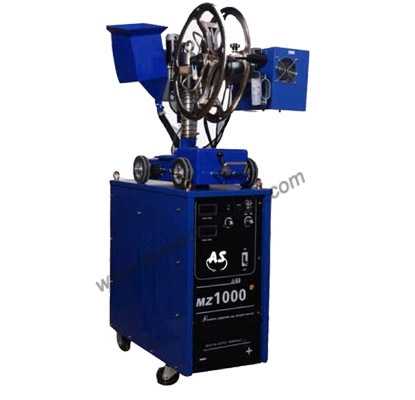

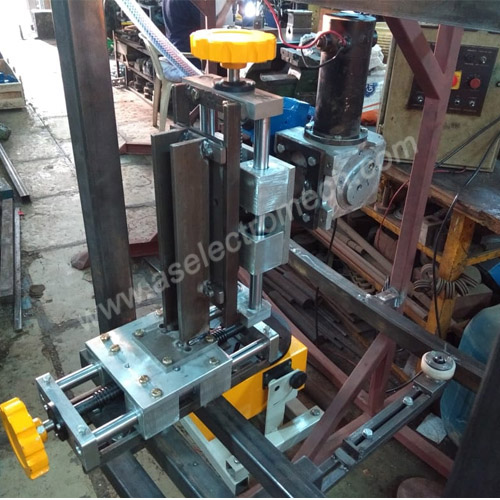

| Parameters | MZ630 | MZ1000 | MZ1250 |
|---|---|---|---|
| Input Voltage | AC 380+-15% | AC 380+-15% | AC 380+-15% |
| Frequency | 50/60 | 50/60 | 50/60 |
| Rated Input Current(A) | 53.1 | 84.3 | 105 |
| No Load Voltage(V) | 72 | 72 | 80 |
| Output Current Range(A) | 50-630 | 100-1000 | 100-1250 |
| Rated Output Voltage (V) | 44 | 44 | 44 |
| ARC FORCE CURRENT RANGE(A) | 0-100 | 0-100 | 0-100 |
| Duty Cycles(%) | 100 | 100 | 100 |
| No-Load Loss(W) | 300 | 300 | 300 |
| Efficiency(%) | 85 | 85 | 85 |
| Power Factor | 0.93 | 0.93 | 0.93 |
| Insulation Grade | F | F | F |
| Housing Protection Grade | IP21 | IP21 | IP21 |
| Net Weight(KG) | 54 | 86 | 90 |
| Packing Dimensions(mm) | 780 x 435 x 760 | 800 x 455 x 785 | 800 x 455 x 785 |

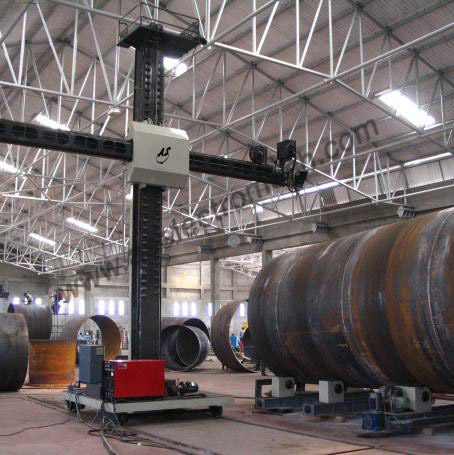

| 1 | Type of Machine | Column & Boom, Motorized Boogie Type |
| 2 | Machine Model | ME/C& M/5065 |
| 3 | Vertical Clear Stroke | 5000 mm |
| 4 | Horizontal clear stroke | 3000 mm |
| 5 | Minimum Height of Boom centre from Rail Top | 1300 mm |
| 6 | Maximum Height of Boom centre from Rail Top | 6300 mm |
| 7 | Minimum Distance between column centre & Boom Face | 750 mm |
| 8 | Maximum Distance between column centre & Boom Face | 3250 mm |
| 9 | Horizontal Travel speed of Boom | 125 to 1250 mm/min |
| 10 | Vertical Travel speed of Boom | 1000 mm/min |
| 11 | Swiveling range for the column base | 360 Degree, Manual |
| 12 | A.C. Motor Capacity of Horizontal Drive | 1 HP/1415 RPM |
| 13 | A.C. Motor Capacity of Vertical Drive | 2 HP/ 1420 RPM |
| 14 | A.C. Motor Capacity of Trolley Drive | 2 HP/ 1420 RPM |
| 15 | Rail Distance (Distance between inner faces of Rails) | 2000 mm |
| 16 | Boogie Travel Speed | 1300 mm/min |
| 17 | Total SAG of Boom (with 250kg) | 10 mm (Max.) |
| 18 | Control Panel:- Boom Horizontal movement, Boom Vertical Movement with over load relay, A.C. Fixed speed boom vertical movement. All motors are protected with limit switches, wiring with multi core cable protected with hose pipe and proper clamping with machine | |
| 19 | Controls on control Panel:- Boom Forward, Boom Reverse, Boom STOP, Boom UP & DOWN, Boogie Forward & Reverse along with panel remote switch | |
| 20 | Operator Console:- Controls on operator console Boom Forward, Boom Reverse, Boom STOP, Boom UP & DOWN, Panel remote switch | |

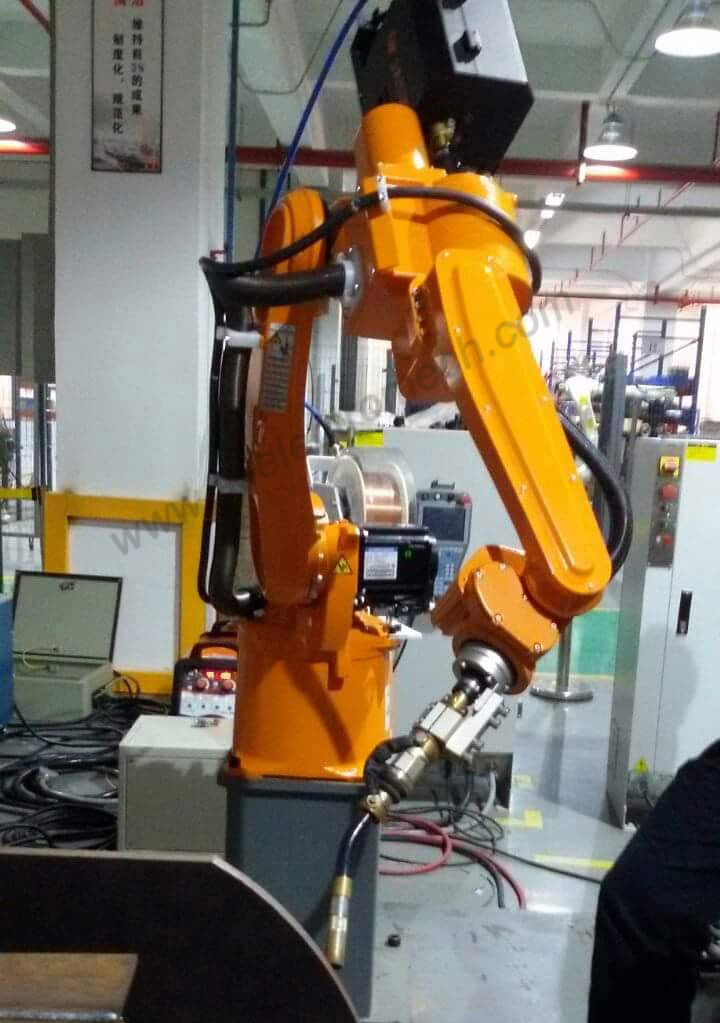

| Model | ASW-1650/06 | |
|---|---|---|
| Arm Form | Vertical Multi-joint | |
| Degree of Freedom of Motion | 64xle | |
| Max.Load | 10KG | |
Max.Stroke |
Arm Rotation | +-180° |
| Arm horizontal | +145~105° | |
| Arm Vertical | +150~ -163° | |
| Wrist Rotation | +-270° | |
| Wrist Bend | +-145° | |
| Wrist Twist | +-360° | |
Max.Speed |
Arm Rotation | 250°/S |
| Arm horizontal | 250°/S | |
| Arm Vertical | 215°/S | |
| Wrist Rotation | 365°/S | |
| Wrist Bend | 380°/S | |
| Wrist Twist | 700°/S | |
Inertia |
Wrist Rotation | 13N.m |
| Wrist Bend | 13N.m | |
| Wrist Twist | 7.5N.m | |
Inertia Moment |
Wrist Rotation | 0.45kg.m2 |
| Wrist Bend | 0.45kg.m2 | |
| Wrist Twist | 0.14kg.m2 | |
| Repeated Positioning Accuracy | +-0.05mm | |
| Max.Coverage | 1650mm | |
| Max. Synthesis Speed | 13700mm/s | |
| Body Weight | 150KG | |
| Color | Orange | |
| Installation | Ground/ Ceiling Suspended | |
Installation Environment |
Environmental Temprature | 0.45°C |
| Relative Humidity | 35-85% (No Condensation) | |
| Vibration | Below 0.5G | |
| Other | The installation must be away from : Flammable or corrosive liquid or gas, Electrical interference sources |
|
| IP Class | Wrist : IP 67 | |

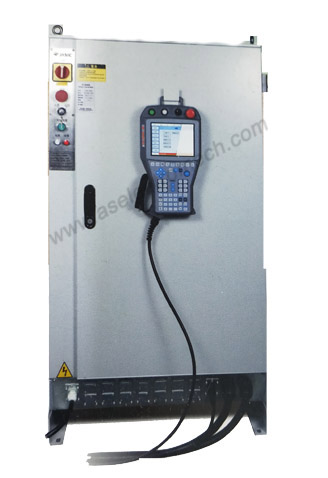

| Corresponding Control Cabinet | G05 | |
| Feature | Compact Size, High Speed, High Precision, High Scalability, Easy to Operate | |
| Application | Welding, Cutting, Assemble, Moving, Marking, Polishing, Sparying | |

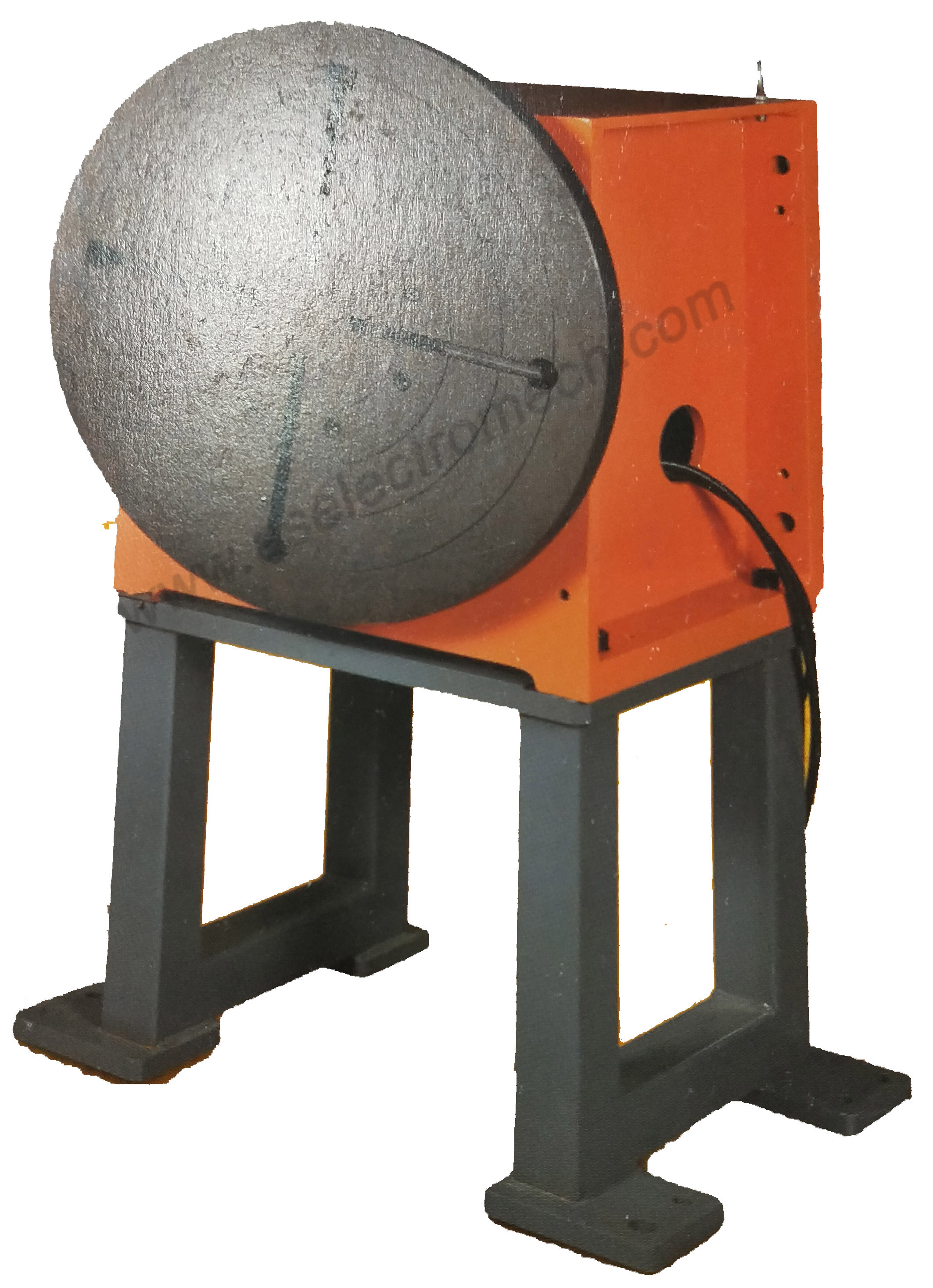

| Model | ASW-1 | ASW-3 | ASW-6 | ASW-10 | ASW-30 | ASW-50 | ASW-100 |
|---|---|---|---|---|---|---|---|
| Rated load capacity (T) | 0.1 | 0.3 | 0.6 | 1 | 3 | 5 | 10 |
| Table rotation speed (rpm) | 0.2-2 | 0.1-1 | 0.1-1 | 0.08-0.8 | 0.07-0.7 | 0.05-0.5 | 0.05-0.5 |
| Table tilting speed (rpm) | Manual | 0.7 | 0.7 | 0.5 | 0.3 | 0.3 | 0.2 |
| Table diameter(mm) | 300 | 600 | 800 | 1200 | 1400 | 1500 | 2000 |
| Table tilting angle (°) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 |
| Rotation Motor power (KW) | 0.09 | 0.09 | 0.37 | 0.75 | 1.5 | 2.2 | 3 |
| Tilting motor power (KW) | Manual | 0.12 | 0.37 | 1.5 | 2.2 | 3 | 4 |
| Max. Eccentricity (mm) | 100 | 100 | 100 | 150 | 150 | 200 | 300 |
| Max. distance of center of gravity | 200 | 200 | 300 | 300 | 300 | 300 | 400 |
| Speed adjusting mode | Frequency conversion step-less control | ||||||
| Power Source Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Model MTW | AS 250 | AS 300 | AS 400 | AS 500 | AS 600 |
|---|---|---|---|---|---|
| Input (+- 10%) | 415 V/3 |
415 V/3 |
415 V/3 |
415 V/3 |
415 V/3 |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Cooling | Forced Air | Forced Air | Forced Air | Forced Air | Forced Air |
| Insulation Class | H | H | H | H | H |
| Primary Current Max.Rated | 15 | 18 | 22 | 28 | 32 |
| At Max. Rated KVA | 1.3 | 1.8 | 2.3 | 2.8 | 3.2 |
| Input Cable Section (Cu) | 10 mm2 | 10 mm2 | 10 mm2 | 10 mm2 | 10 mm2 |
| O.C.V | 75-85V | 75-85V | 75-85V | 75-85V | 75-85V |
| Duty Cycle | 60% | 60% | 60% | 60% | 60% |
| Welding Cable | 50 mm2 | 50 mm2 | 50 mm2 | 70 mm2 | 95 mm2 |
| Range | 10-250A | 10-300A | 10-400A | 10-500A | 10-600A |
| Protection Class | Ip23 | Ip23 | Ip23 | Ip23 | Ip23 |
