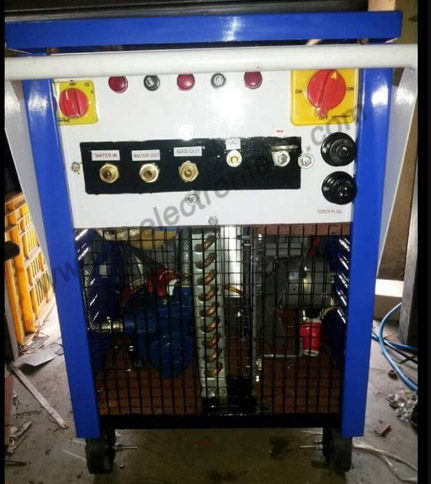

Water Cooling With HF Machine


Model ASW-10 ASW-20
Main Voltage (V) Single Phase 220+_10% / 50Hz
Cooling capacity (Kw) 1.5(1L/min) 1.5(1L/min)
Motor (W) 260 260
Duty cycle 100% 100%
Max Pressure 3BAR / 60Hz(30m/60Hz) 3BAR / 60Hz(30m/60Hz)
Tank (L) 9 26
Flow rate 8.5/min at 6m/H 8.5/min at 6m/H
Operation(°C) -20-60 -20-60
Radiator AL-radiator 2R Cu36x40cm
Dimension LxWxH (mm/inch) 485x273x360/19.1x10.7x14.1 720x390x520/28.3x15.3x20.5
Net weight(kg/lb) 13/28.7 32/70.6

HF Unit

We Sohail Industries And Infra Project are enagaged in manufacturing, exporting & servicing a wide range of HF Unit to our prestigious clients. Our HF unit is manufactured in sync with the international quality standards using outstanding grade raw materials.

Features :

  • Modular Design
  • Energy Saving
  • Prevention of Electrode Freezing

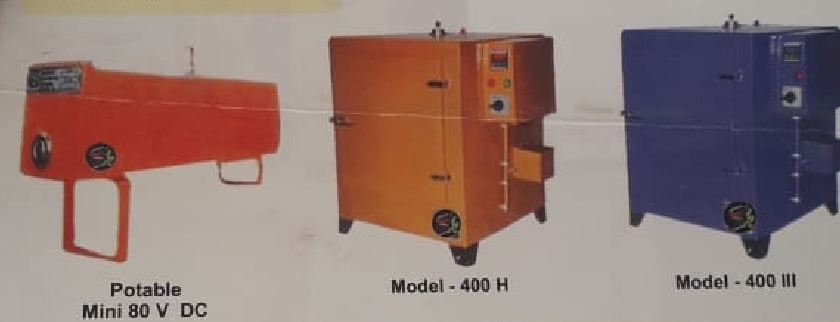

Stationery Mather Oven


Specification Model
Stationery 300M Stationery 300H Stationery 400M Stationery 400III Stationery 500H Stationery 500III Stationery 400DAC
Voltage 200V AC 200V AC 220V AC 220 / 415 V AC 220V AC 415V AC 415V AC
Temprature 50°-300° 50°-300° 50°-400° 50°-400° 50°-500° 50°-500° 50°-400°
Thermostat Manual Digital Digital Digital Digital Digital Digital
Phase Single Single Single Single/3 Single Single/3 3
Working space (approx) 400X400X90MM 470X465X500MM 470X465X500MM 470X465X500MM --- --- ---
Shelves 5 5/6 5/6 5/6 5/6 5/6 24
Air Circulation Natural Convection Natural Convection Natural Convection Natural Convection Natural Convection Forced Air Forced Air
Capacity 35Kg of electrodes 50Kg of electrodes 50Kg of electrodes 50-100Kg of electFlux 50Kg of electrodes 50Kg of electFlux 100Kg of electrodes

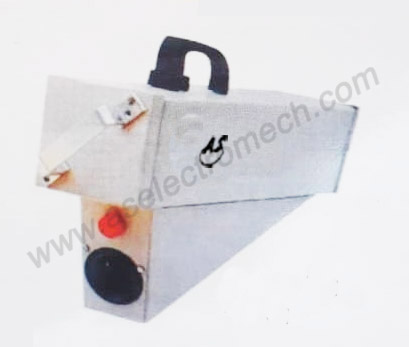

Portable Oven

Specification Portable 80V DC Portable Mini 220V AC Portable Max 220V AC
Voltage 80V AC 220V AC 220V AC
Working Space (approx) 57 Dia x 418 Depth 100 x 100 x 418 Depth 80 Dia x 145 Depth
Temprature 150°C - 200°C 150°C - 200°C 50°C - 300°C
Capacity 3 -5 Kg 3 -5 Kg 3 -5 Kg
Air Circulation Natural Convection Natural Convection Natural Convection

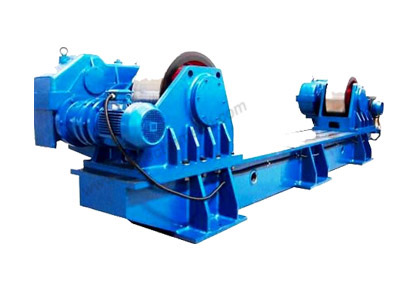

Welding Tank Rotator (Self-aligning Rotator)

Model Load Capacity(mm) Center distance(mm) Roller diameter(mm) Roller width(mm) Workpiece diameter
ASW-5T 5T 1030 260 120 2500 300
ASW-10T 10T 1070 308 170 3000 350
ASW-20T 20T 1180 308 200 3500 400
ASW-30T 30T 1270 308 220 4000 500
ASW-40T 40T 1600 425 220 4200 600
ASW-50T 50T 1700 425 220 4600 700
ASW-60T 60T 1750 425 240 4800 800
ASW-80T 80T 1900 425 240 5000 900
ASW-100T 100T 2200 500 240 5500 1000
ASW-120T 120T 2500 600 300 6000 1200
ASW-120T 120T 2500 600(Steel) 220 6000 1200
ASW-150T 150T 2700 600(Steel) 300 6500 1200

Adjustable Rotator

Model Load Capacity(mm) Roller diameter(mm) Roller width(mm) Workpiece diameter(mm)
ASW-2 2 260 120 200-2000
ASW-5 5 308 120 200-2500
ASW-10 10 308 170 300-3000
ASW-20 20 360 180 300-3500
ASW-30 30 425 220 300-4000
ASW-40 40 425 220 300-4500
ASW-50 50 425 240 400-4500
ASW-60 60 500 240 600-5000
ASW-80 80 580 260 800-5500
ASW-100 100 580 280 1000-6000
ASW-120 120 600 200 1000-6500
ASW-150 150 600 220 1100-7000
ASW-200 200 700 260 1200-7800
ASW-300 300 800 300 1500-8500

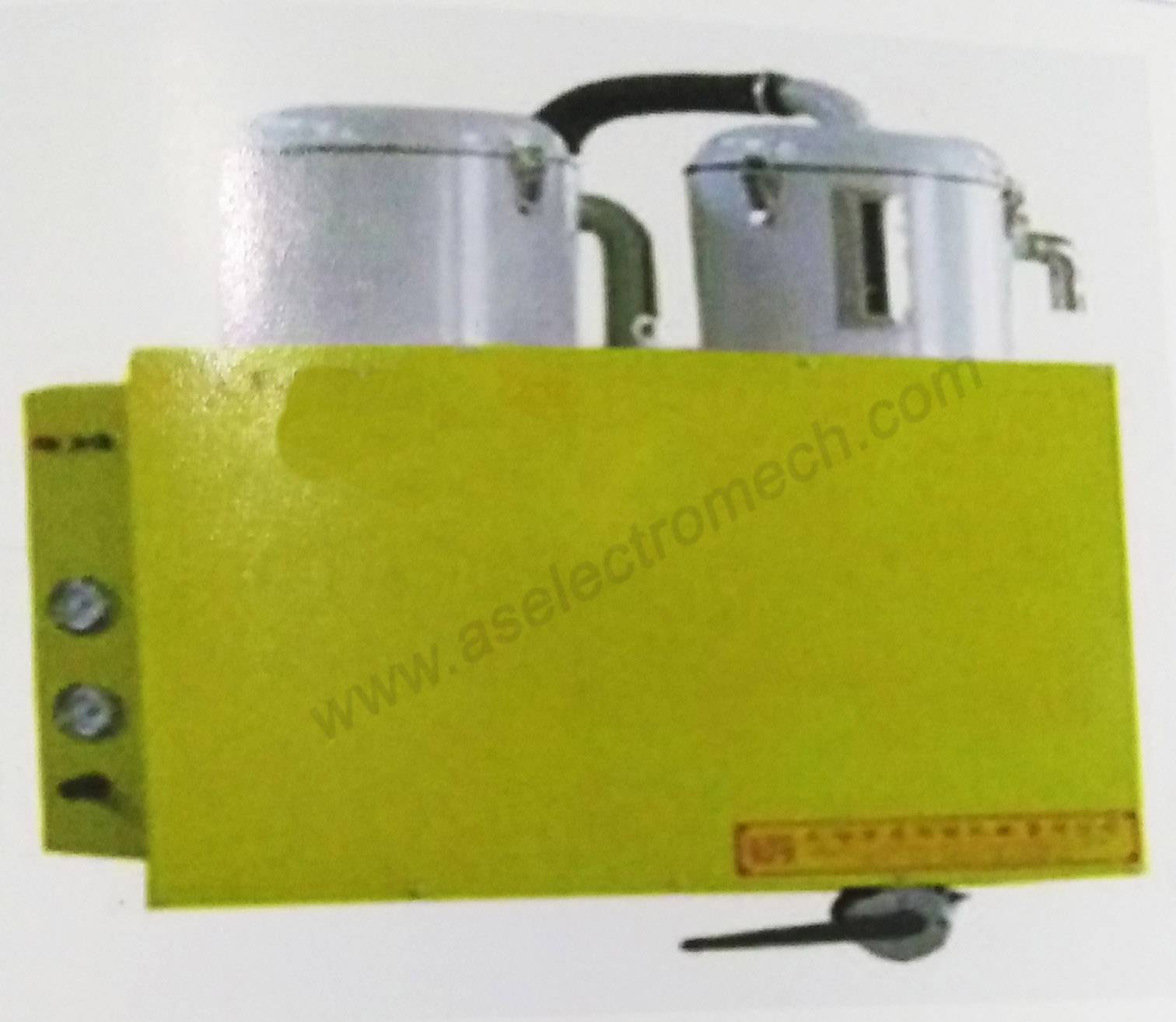

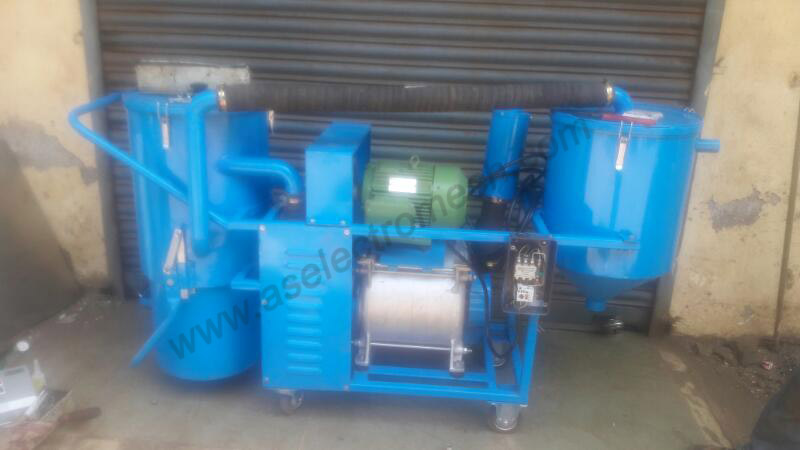

Flux Recovery System


This system is specially designed for welding beam. It applies the imported air pump assembly which absorbs the welding flux into the inside of aggregate tube and then placed into the feed mechanism by external gas source by manual or automated control.

Then it transports the flux directly into the small hopper and then put the flux into the workpiece ensuring the welding process which realizes the flux recovery and feeding.


Safety Gloves

We Sohail Industries And Infra Project have gained expertise in domain by offering a wide assortment of Safety Gloves. These safety gloves offered by us are made using superior grade fabrics, sourced from the trustworthy vendors of the market. This range is applicable for foundries, steel mills, casting shops, heat treating operations and welding shops

We are a remarkable entity in this domain, engaged in offering a qualitative assortment of Safety Gloves. The offered products are suitable while working in industry and known for having fine grip. Along with this, the offered range is checked on different parameters to ensure its adherence with the international quality norms and standards.

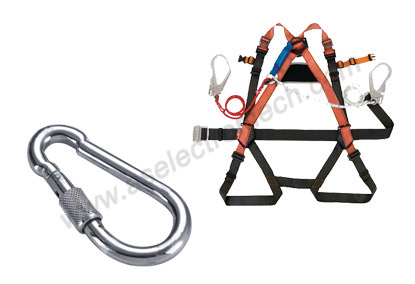

Safety Belts And Hooks


Being a client focused business name; we Sohail Industries And Infra Project are readily occupied in offering a comprehensive consignment of Safety Belt Hook.

We are counted amongst the reputed name engaged in offering an exclusive range of Safety Belts & Hooks.
Features :

  • Industry approved design
  • made of Superior grade alumiunium
  • Metallic appearance

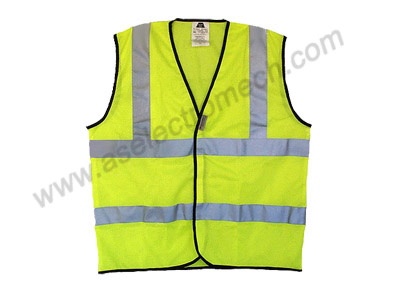

Safety Jackets

These safety jackets are used in various safety applications, these safety jackets are designed by our experts by consuming basic material and newfangled machinery. Safety jackets are made from Reflective Fabrics, yarns etc and decorated with reflective tapes. The offered safety jackets clothes are proved at nominal rates to our customers.

Before their finishing transmits, the offered safety jackets are well tested on quality provisions in order to assure that these are made according to tit he market norms. As a result the industry personnel remain visible to drivers and bikers during night, fog and other conditions, thereby preventing risks in their jobs.

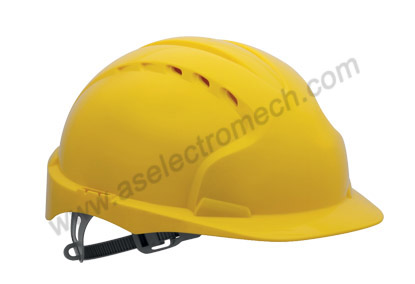

Safety Helmets


Our safety helmets with the primary function is to protect the wearers head from falling objects are made up of tough Polyethylene and are also light weight for user's convenience. These helmets accommodate a range of head sizes with hearing protection, providing hearing protection and face protection in extreme industrial environments.

These comply with the universal standards of safety & quality and are carefully designed for user's comfort. The external form of a smooth, free flowing outer shell surface, reflects ergonomic considerations of being well balanced, light weight and also incorporates excellent peripheral vision.

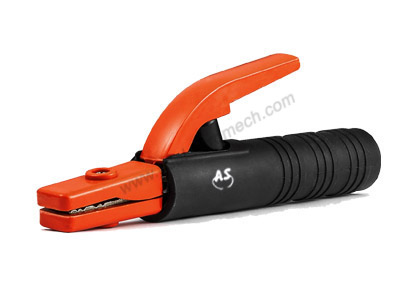

Welding Holders

Welding Electrode Holders are suitable for manual metal arc welding with covered electrodes of length not more than 45omm. Welding holders are fitted with special alloys jaws which have more thermal conductivity than copper resulting in less heating problems during welding processes and hence greater life.

Features :

  • Welding Holders are suitable for use on circuits with open circuit voltage up to and including 100volts (rms).
  • They are light in weight so as to reduce handling problems.
  • They have the provision for altenative position for gripping electrodes to avoid the necessity for bending the electrodes hen welding in different positions.
  • Their design is such that under normal conditions of service, it is possible to weld with electrodes in any position in the holder until a stub only 40mm in length remains without damage to the holder.

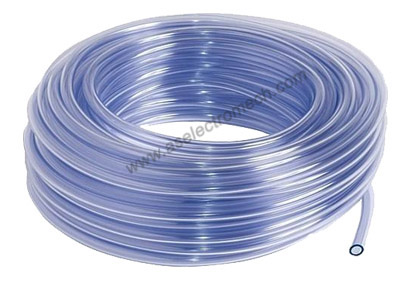

Hose Pipe


We Sohail Industries And Infra Project are one of the leading manufacturer, exporter & trader of Hose Pipe to meet the quality standards as per the customer demand. We design the given product following industrial standards by making use of best quality material and modern technology.

This range is manufactured in tandem with set industry standards and is available in different sizes, lengths and end fitting configurations. We test this range on several quality parameters and deliver it within committed time frame.
Features :

  • Easy installation
  • Low maintenance requirement
  • Long-lasting

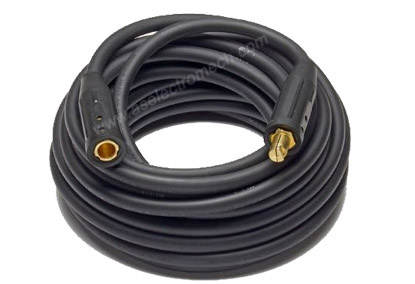

Welding Cables

Welding Machine (Copper Conductor)
Current Rating Duty Cycle
Nominal Area of Conductor Number/ Diameters of Wires in mm Thickness of covering in mm TRS / General (20%) HOFR(30%)
16 sp.mm 510/0.20 mm 2.00 mm 210AMPS 246AMPS
25 sp.mm 796/0.20 mm 2.00 mm 279AMPS 343AMPS
35 sp.mm 1114/0.20 mm 2.00 mm 349AMPS 403AMPS
50 sp.mm 707/0.30 mm of 1591/0.20 mm 2.20 mm 440AMPS 509AMPS
70 sp.mm 707/0.30 mm of 1591/0.20 mm 2.40 mm 555AMPS 643AMPS
95 sp.mm 1133/0.30 mm 2.60 mm 669AMPS 774AMPS
